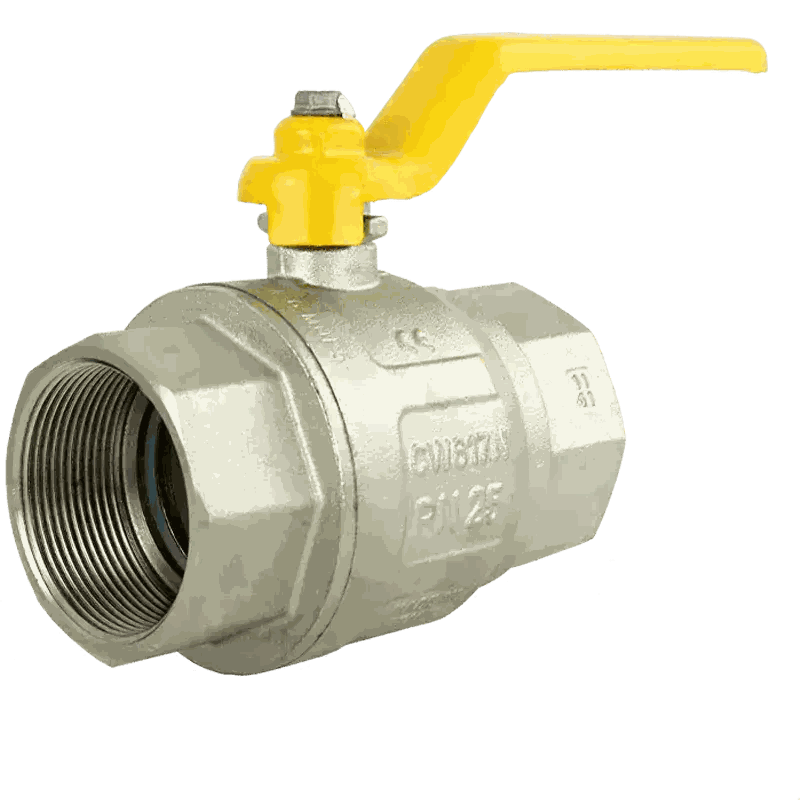

Full Port Forged Brass Gas Shut-Off Ball Valve (Female x Female Threaded)
Take complete control over your utility lines with our commercial-grade Forged Brass Gas Shut-Off Valve. Designed with a dual Female Threaded (FIP / NPT / BSP) configuration on both ends, this inline ball valve creates an airtight, leak-proof junction directly between male-threaded pipes or appliance connectors.
Engineered with a heavy-duty, one-piece forged brass body, it utilizes a smooth-gliding, hard-chrome-plated brass ball mechanism. It guarantees a swift, zero-leak isolation point for natural gas, liquid petroleum (LP), propane, and compressed air systems.
Key Features & Benefits
-
Quarter-Turn Positive Shut-Off: Smooth, 90-degree manual lever handle provides instant fluid isolation. Yellow or green safety coating offers quick visual status confirmation from across the room.
-
Maximum Flow Full-Port Design: Engineered to optimize gas pressure and maximize flow delivery while keeping internal pressure drops to an absolute minimum.
-
Blowout-Proof Stem System: Built with an internal-assembly blowout-proof stem structure for ultimate operator safety under demanding system surges.
-
Dual PTFE Conical Seals: Premium Teflon (PTFE) seats deliver high chemical resistance and total zero-leak integrity even after years of continuous cycling.
-
Deep Precision Threads: Features clean, factory-knurled female threads that hold thread sealant paste or PTFE tape firmly in place without slipping.
Broad System Compatibility
An essential, code-approved emergency shut-off valve designed for line connections across multiple setups:
-
Main Residential and Commercial Natural Gas Piping Line Systems
-
Liquid Petroleum Gas (LPG) and Propane Storage Tanks & Cylinders
-
Household Gas Appliances (Furnaces, Water Heaters, Ranges, and Fireplaces)
-
Compressed Industrial Gases (Nitrogen, Helium, Carbon Dioxide, and Industrial Air lines)
Technical Specifications
-
Thread Pattern: Female National Pipe Tapered (NPT) / British Standard Pipe (BSP)
-
Body Material: High-Tensile Forged Brass
-
Max Working Pressure: Rated up to 600 PSI WOG (Water, Oil, Gas) / 5 Bar (MOP5) Gas Line Limit
-
Temperature Threshold: Operational from -20°C to 120°C (-4°F to 248°F)
- Certifications Met: Certified to CSA, ANSI, and ASME standards for residential indoor and outdoor appliance line safet
