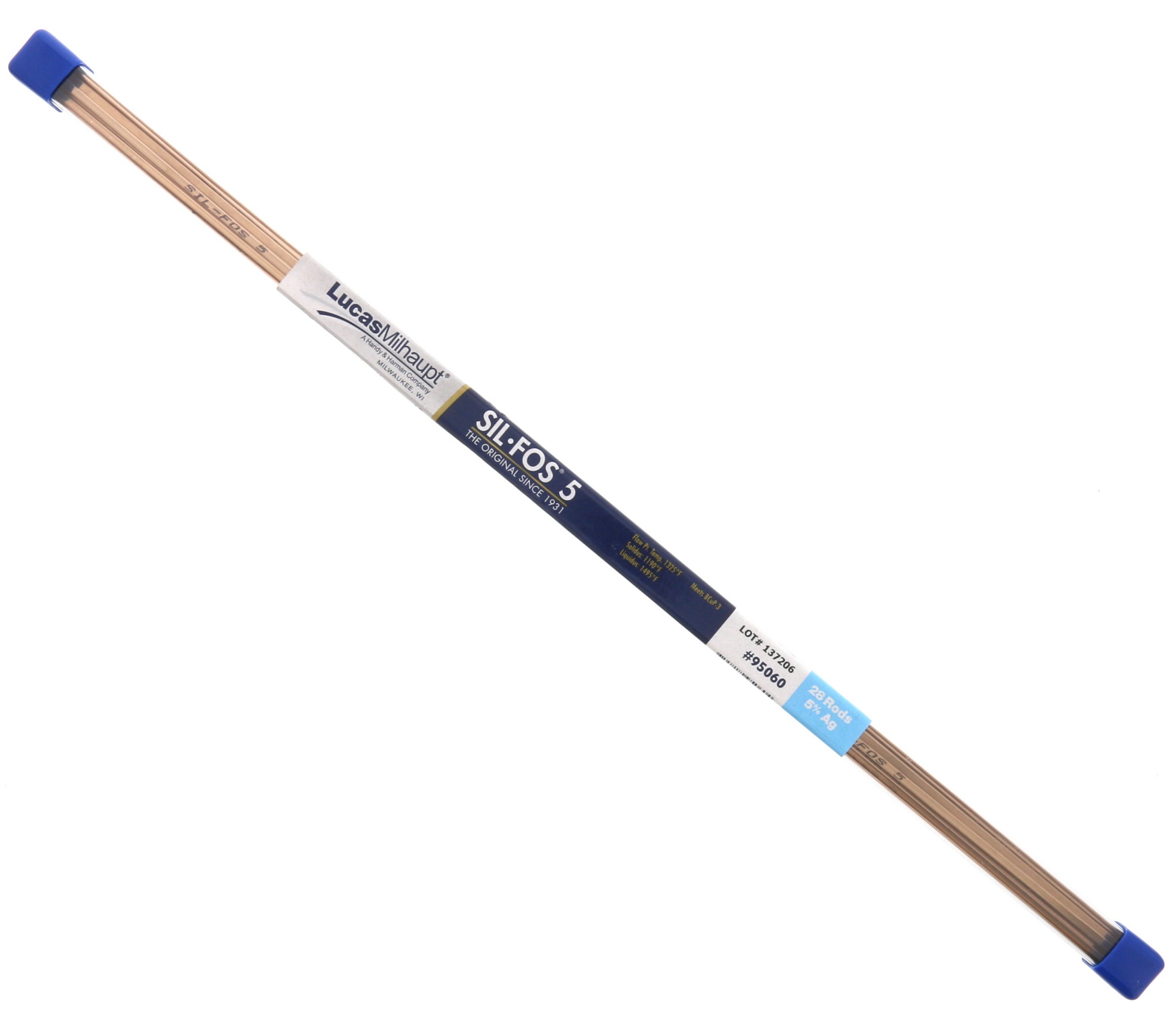

Premium Sil-Fos 5% Silver Brazing Rods (AWS A5.8 BCuP-3 Compliant)
Engineered specifically for HVAC, refrigeration, and plumbing professionals, our Premium Sil-Fos 5% Silver Brazing Rods deliver the perfect balance of ductility, flow control, and cost-efficiency. This high-performance copper-silver-phosphorus alloy is designed to handle the intense vibrations, thermal cycling, and high-pressure demands of modern air conditioning and refrigeration systems.
Featuring a unique "medium flow" melting range, these rods give the operator excellent control, making it easy to bridge gaps, cap off joints, and manage loose-fitting pipe connections in tough field conditions.
Key Features and Benefits
Self-Fluxing on Copper: The built-in phosphorus content acts as a powerful deoxidizing agent during heating. This completely eliminates the need for an external flux when joining copper to copper, saving job time and preventing internal line contamination.
5 Percent Silver Enhancements: The addition of 5 percent silver significantly improves the ductility and flexibility of the brazed joint compared to standard 0 percent silver rods. This helps the pipeline withstand heavy compressor vibrations and structural shifts without cracking.
Excellent Gap-Bridging Control: Formulated with a wide melting range (plastic range), this alloy flows smoothly but slowly enough to build strong, robust fillets and easily close up gaps where a tight fit-up cannot be maintained.
Industry Code Compliance: Fully compliant with AWS A5.8 BCuP-3 and ISO 17672 CuP 281 standards, meeting strict commercial mechanical engineering and plumbing specifications.
High-Pressure Compatibility: Provides deep, highly dependable joint penetration rated to securely contain modern high-pressure refrigerants including R410A, R32, R290, and R134A.
Technical Specifications
Industry Specification: AWS A5.8 / ASME SFA-5.8 BCuP-3
Nominal Composition: 5.00 percent Silver, 89.00 percent Copper, 6.00 percent Phosphorus
Solidus Temperature (Melting Point): 1190 degrees Fahrenheit (643 degrees Celsius)
Liquidus Temperature (Flow Point): 1495 degrees Fahrenheit (813 degrees Celsius)
Recommended Brazing Range: 1325 degrees Fahrenheit to 1500 degrees Fahrenheit (718 degrees Celsius to 815 degrees Celsius)
Material Restrictions: Do not use on ferrous metals (steel, iron) or nickel alloys, as it will form a brittle joint interface. External flux is required for copper-to-brass applications.
Ideal Applications
Brazing Condenser and Evaporator Coils in HVAC/R Systems
Installing and Repairing Ductless Mini-Split Refrigerant Line Sets
High-Vibration Compressor Discharge Line Connections
Commercial Plumbing Fabrication and Industrial Copper Piping Loops
